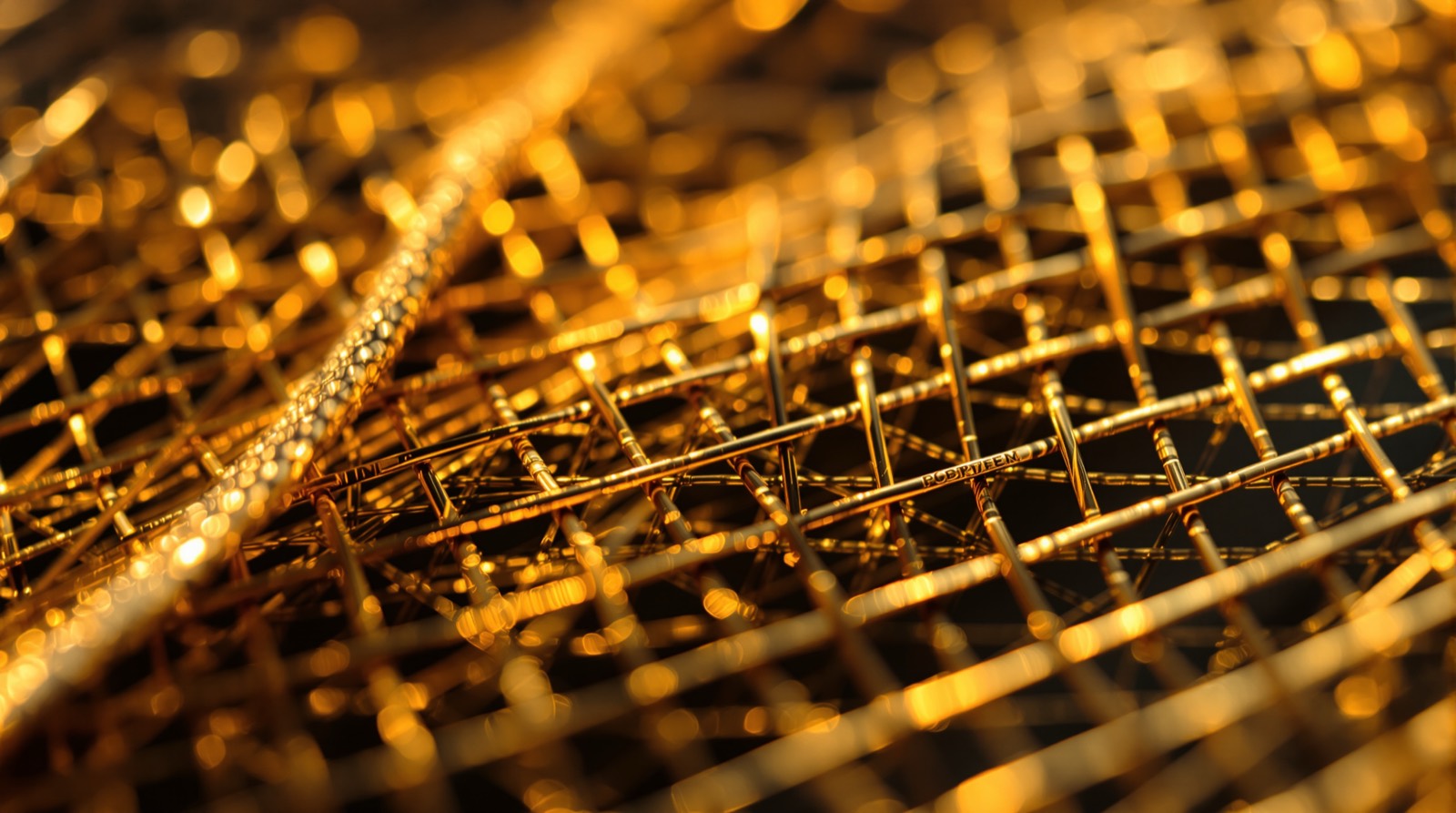

Golden woven brass wire mesh cloth in fine square weave

Brass is an alloy of copper and zinc. Compared with pure copper it has much better abrasion resistance, better corrosion resistance and lower electrical conductivity. Phosphor bronze is an alloy of tin, phosphorus and copper; it is corrosion, wear and tear resistant, though it is not suitable for exposure to hydrochloric acid or strong oxidizing agents. Both alloys weave into a soft-toned, non-sparking, non-magnetic cloth that has served sieving rooms for over a century.

Applications

Brass and phosphor bronze wire mesh are frequently used in sieving diversified pellets, powder, porcelain clay and glass; in chinaware printing; and in filtering liquid and gas. The copper alloys' natural properties suit them to explosive-atmosphere environments (non-sparking), RF shielding and decorative architectural work. Technical data on copper alloys and their selection is published by the Copper Development Association.

Range and Roll Sizes

We are capable of supplying brass wire mesh from 1 to 200 mesh, and phosphor bronze wire mesh from 1 to 500 mesh. Standard rolls are 3' x 100' and 1 m x 25 m, or at the buyer's request. Cut pieces, discs and framed sieves are available as custom work.

Specification of Brass Wire Mesh

Mesh	SWG	Wire Dia. (mm)	Wire Dia. (inch)	Opening (mm)
6	22	0.711	0.028	3.522
8	23	0.610	0.024	2.565
10	25	0.508	0.020	2.032
12	26	0.457	0.018	1.660
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.840
24	30	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.247	0.011	0.573
32	33	0.254	0.010	0.540
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60 x 50	36	0.193	0.0076	-
60 x 50	37	0.173	0.0068	-
60	37	0.173	0.0068	0.250
70	39	0.132	0.0052	0.231
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.170
100	42	0.102	0.004	0.152
120 x 108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
140	46	0.061	0.0024	0.120
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	47	0.051	0.002	0.090
200	47	0.051	0.002	0.076

Ordering

State alloy (brass or phosphor bronze), mesh count, wire diameter or SWG, roll size and quantity through the Online Order form. For stainless alternatives at higher strength, see plain weave stainless wire mesh; for the full product range, browse the Products Catalog.
