Insect screening is widely used in windows, doors and corridors to keep mosquitoes, flies and other insects out while letting air and light through. Standard specifications are 14x14, 16x14, 16x16, 18x14 and 18x18 mesh, with wire diameter generally BWG 31 or BWG 32 — fine enough to disappear visually at a few paces, tight enough to stop biting insects.
Screening Types We Supply
- Enameled wire mesh
- Galvanized iron wire mesh
- Painted iron wire mesh
- PVC-coated iron wire mesh
- Epoxy-coated wire mesh
- Aluminum alloy wire mesh
- Fiberglass wire mesh
- Plastic wire mesh
Materials available include low-carbon steel wire, stainless steel wire, chemical fiber, aluminum-magnesium alloy wire, galvanized wire, PVC wire and aluminum wire, woven in I type and II type patterns.
Characteristics and Use

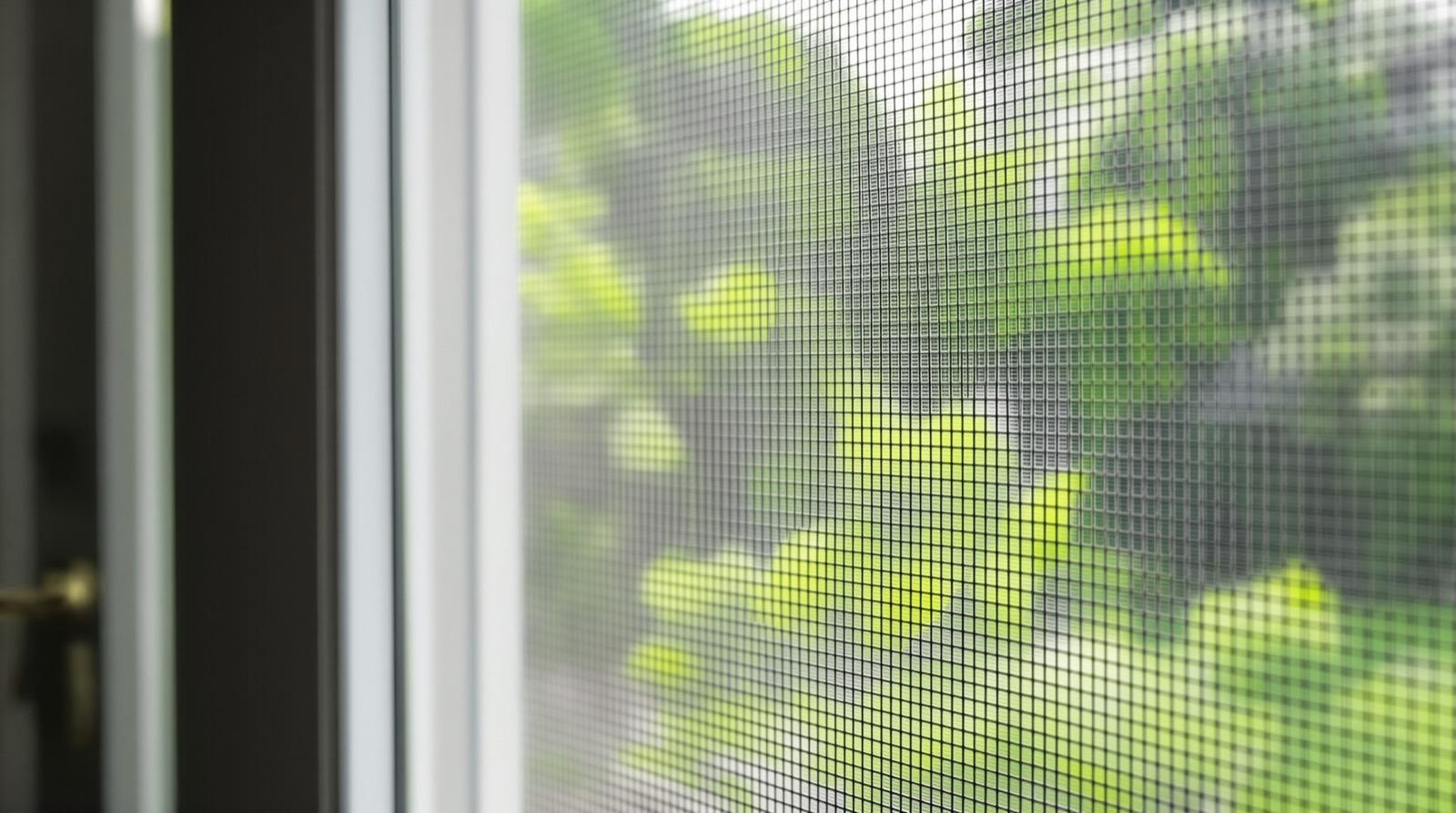

Good screening is light, has good tenacity and rust resistance, ventilates well and cleans easily. It serves as insect protection in hotels, public buildings and residential houses. Window and door screens are also a recognized public-health measure: the U.S. EPA's mosquito control guidance lists installing and repairing window and door screens among the first steps for keeping mosquitoes out of the home. For premium all-stainless screening, see our stainless steel wire netting page.
Choosing a Screen Material
Galvanized or epoxy-coated steel is economical and stiff, good for fixed frames. Aluminum alloy resists corrosion without coating and stays bright. Fiberglass and plastic are soft, kink-free and the easiest for roll-form replacement screens. Stainless steel outlasts them all in coastal and commercial service. Mesh count choice is a airflow-versus-exclusion trade: 14x14 maximizes ventilation; 18x18 excludes smaller insects.
Standard Rolls and Packing
| Width x Length x Mesh | Weight (kg/roll) | Carton (2 rolls) |
|---|---|---|
| 3' x 100' x 14 mesh | 7.5 | 92 x 25 x 12.5 cm |
| 3' x 100' x 16 mesh | 8.5 | 92 x 25 x 12.5 cm |
| 3' x 100' x 18 mesh | 10 | 92 x 25 x 12.5 cm |
| 1 m x 25 m x 14 mesh | 7 | 102 x 25 x 12.5 cm |
| 1 m x 25 m x 16 mesh | 8 | 102 x 25 x 12.5 cm |
| 1 m x 25 m x 18 mesh | 10 | 102 x 25 x 12.5 cm |
| 1.2 m x 30 m x 14 mesh | 10.5 | 122 x 25 x 12.5 cm |
| 1.2 m x 30 m x 16 mesh | 12 | 122 x 25 x 12.5 cm |
| 1.2 m x 30 m x 18 mesh | 14 | 122 x 25 x 12.5 cm |
| 1 m x 25 m x 20 mesh | 12 | 122 x 25 x 12.5 cm |
| 1 m x 25 m x 22 mesh | 13 | 122 x 25 x 12.5 cm |
| 1 m x 25 m x 30 mesh | 13 | 122 x 25 x 12.5 cm |
Ordering
State material, mesh count, roll size and quantity via the Online Order form; mixed-material container loads are routine for hardware distributors. Related: galvanized square wire mesh for heavier window guards.
